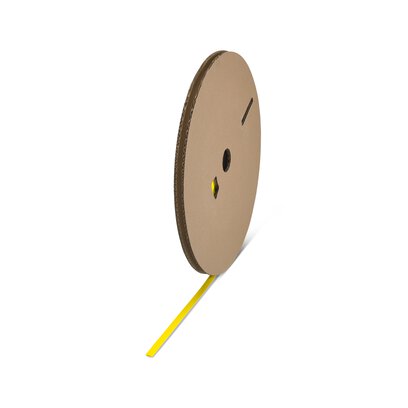

E-WMS 6,4 (EX10)RL YE - Shrink sleeve Phoenix Contact

Mã sản phẩm: 1221589

Danh mục: PHOENIX CONTACT, Mark, assemble, and install Phoenix Contact,

Shrink sleeve, Roll, yellow, unlabeled, can be labeled with: THERMOMARK E.SLEEVE, THERMOMARK E.300 (D)/600 (D), THERMOMARK ROLLMASTER 300/600, THERMOMARK ROLL X1, THERMOMARK ROLL, THERMOMARK ROLL 2.0, THERMOMARK W, THERMOMARK X1.2: without print, mounting type: slide-on, cable diameter range (automated processing): 2.1 ... 6 mm, cable diameter range: 2.1 ... 6.4 mm, lettering field size: 10 x (min. 15 ... max. 51) mm, roll length: 100 m

Liên hệ mua hàng

Hãng sản xuất: PHOENIX CONTACT

Chất lượng: Mới 100%

Bảo hành: Chính hãng

Chứng từ: CO/CQ, hóa đơn VAT

Liên hệ(SĐT/Zalo): 0933612627

Mô tả

General	For the THERMOMARK ROLL and THERMOMARK ROLL 2.0 roll printers, this material can only be processed with an external media hub.
General	The specified minimum wire diameter of the shrink sleeve refers to its use as a marking material and does not guarantee any insulation characteristics once shrunk. Depending on the processed material batch, as well as the storage and processing conditions, the maximum insertable wire diameter may be reduced.

Product type	Shrink sleeve
Type	Shrink sleeve
Marking
Printing	without print
Marking technology
Device	1004303 THERMOMARK E.300 D
		1004304 THERMOMARK E.600 D
		1285306 THERMOMARK E.300
		1285310 THERMOMARK E.600
		1287033 THERMOMARK E.300 D US
		1287040 THERMOMARK E.600 D US
		1287021 THERMOMARK E.300 US
		1287029 THERMOMARK E.600 US
		1287032 THERMOMARK E.300 D CN
		1287039 THERMOMARK E.600 D CN
		1287020 THERMOMARK E.300 CN
		1287028 THERMOMARK E.600 CN
		1287034 THERMOMARK E.300 D AR
		1287041 THERMOMARK E.600 D AR
		1287022 THERMOMARK E.300 AR
		1287030 THERMOMARK E.600 AR
		1287038 THERMOMARK E.300 D KIT
		1287031 THERMOMARK E.600 KIT
		1287026 THERMOMARK E.300 KIT
		1287042 THERMOMARK E.600 D KIT
		0804501 THERMOMARK ROLLMASTER 300
		0804663 THERMOMARK ROLLMASTER 600
		1085260 THERMOMARK ROLL 2.0
		5146477 THERMOMARK ROLL
Ink ribbon	1259008 TM-RIBBON 40 BK 105
Printability	Thermal transfer

Width	10 mm
Length of roll	100.00 m
External dimensions
Outside diameter	2.1 mm ... 6.4 mm

RoHS compliant	yes
Color	yellow
Material	Polyolefine
Base element material	polyolefine

External cable diameter

2.1 mm ... 6.4 mm

Test for substances that would hinder coating with paint or varnish
Result	Test passed
Scratch test for the determining scratch resistance
Specification	DIN EN ISO 1518-1:2019-10 (following)
Requirements	≥ 5 N
Result	Test passed
Tesafilm test
Specification	DIN EN ISO 2409:2013 (following)
Result	Test passed
UV resistance
Specification	ISO 4892-2:2013-03 (following)
Result	Test passed
Test duration	96 h
Temperature resistance
Specification	ANSI/UL 969-2018:03 (following)
Test duration	240 h
Rating 125 °C (150 °C)	Test passed
Specification	ISO 175:2010 (following)
Test duration	168 h
Testing in a condensation changing climate in the presence of sulfur dioxide
Specification	DIN 50018:2013-05
Result	Test passed
Climate level	AHT 1.0 S
Cycles	2
Salt spray test
Specification	DIN EN 60068-2-11:2000-02
Result	Test passed
Test duration	96 h
Ambient conditions
Ambient temperature (operation)	-55 °C ... 125 °C
Recommended ambient temperature (storage/transport)	23 °C
Recommended humidity (storage/transport)	50 %
Shelf life	5 years
